產品型號：2GB
產品代碼：2GB
產品價格：
產品編碼：2GB
計量單位：臺
折 扣 率： 0
最后更新：2017-03-30
關 注 度：4369
生產企業：常熟通閏電子技術有限公司
|
|
|
 與企業聯系時請告知該信息來自教育裝備網！ |
|
|
產品詳細介紹真空手套箱的特點：
1.不銹鋼材料，抗腐蝕易清洗；
2.結構簡單，視窗開闊；
3.內置電源，使用方便；
4.箱體置換速度快，較短時間內可達到您實驗要求；
5.真空度：0—-0.1MPa

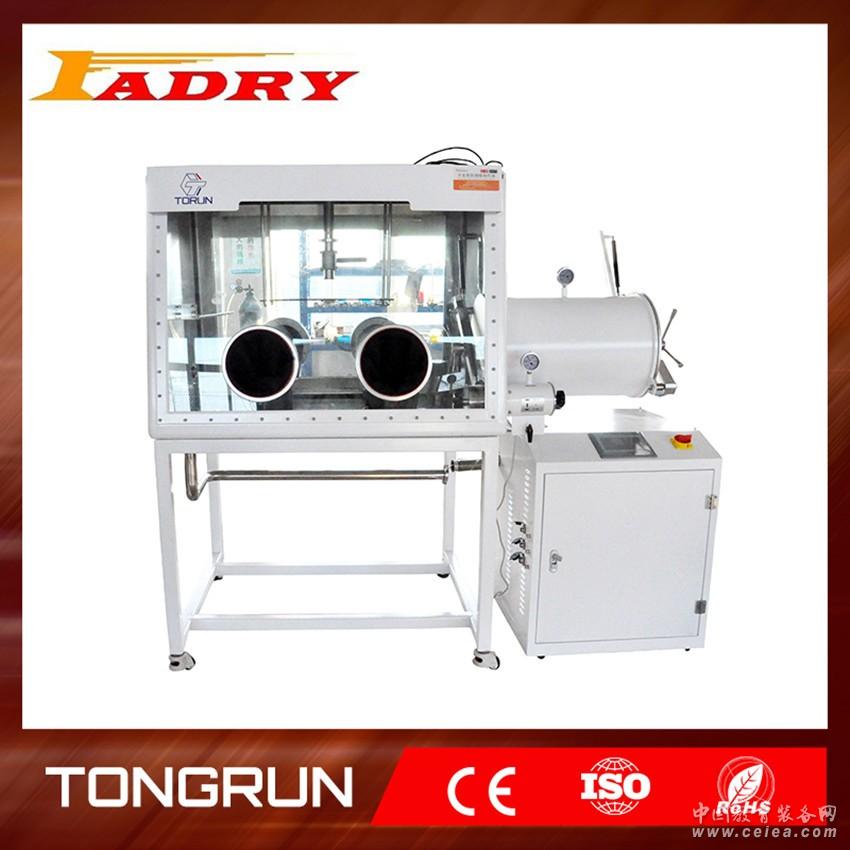

Large Glove Box with Gas Purification System and Digital Control Model: 2GBS
HOW GLOVE BOX WORK
Box and gas purification system, form a sealed environment, filled with Inert gas such as argon gas to the cabinets, and circulation to remove internal active substances, allowing the system always maintain high cleanliness and high purity inert gas environment (water, oxygen are equipment a 1 ppm below).
Mainly for O2, H2O clearing.
GLOVE BOX APPLICATIONS
Anhydrous, anaerobic and clean, ultra-clean work environment
The R&D and production of batteries and battery materials (lithium-ion battery, battery, solar cell, the lithium iron phosphate, etc.)
The R&D and manufacturing of special lamps: HID lamps, metal halide, ceramic metal halide.
Welding: resistance welding, TIG welding, laser welding, plasma welding, brazing.
OLED R&D and production.
The development and production of medical supplies.
Development and production of the super capacitor.
Fine chemicals, nuclear industry.
The new energy and new materials development and production.
Technical Parameters
Product technical parameters
Model Cabinet Size （mm） The total size of equipment （mm） Configuration Description
2GBS ≈L1220*W760*H900 ≈L1935*W790*H1800 Monomer type. Material：SUS304 stainless steel
Hardware configuration
Configuration and
Quantity Technical parameters Remark
1 standard airlock DN385×600mm Located in the cabinet right side, The airlock with sliding tray
Exterior doors equipped with door booster device.
Material: SUS304 stainless steel, aluminum alloy.
1 tool airlock DN150×300mm Located in the cabinet right side,
Material: SUS304 stainless steel.
1 cabinet rack H = 900mm Carbon steel,with casters (with support feet), convenient mobile glovebox, fine-tune the level
1 transparent
visualization panel thickness: 12mm tempered glass,
the front glass can be removed to facilitate the small device placed;
2 Gloves Cuff diameter 8” Material: butyl rubber;
Brand: NORTH
1 Power outlet 110V~250V Located inside of the cabinet
1 Lighting system Lamp, ballast Configuration fluorescent tubes
Brand: Philips
3 Standby
interface KF40 Configuration quick connector, located in the box right side, so that the liquid or gas can be easily and safely in and out of the cabinet。
Material: SUS304 stainless steel
2 HEPA filters Subject to HEPA standards Filter precision 0.3μm, installed in the cabinets,filter dust.
2 Vacuum gauge Mechanical dial display Used to measure the vacuum value of the airlock.。
1 Foot controller Double pedal Control purification system to supplement and emptying the gas in the cabinet.
1 Purge valve Electro-pneumatic Automatic electro-pneumatic valve
Brand: BURKERT。
1 Gas purification system Single purification
the column (GP-1) With water scavenging, and oxygen scavenging function;
German BASF the deaerator materials, UOP efficient absorbent materials,
The purification system of regeneration process automatically control,
Long-term, continuing to maintain gas purity: H20 & O2 <1ppm
Control system Color touch screen: 6 inch PLC control system, touch-screen operation,
Brand: SIEMENS;
1 Vacuum pump Model: GLD-N201 Exhaust volume 4L / S,
Brand: Japan ULVAC.
1 Pressure-sensing instrument -2500 ~ 2500Pa
(relative pressure) Touch-screen display;
Brand: SIEMENS.
1 Oxygen
Transmitter 0～1000ppm Touch-screen display; oxygen sensor
Brand: American AII.
1 Water probe 0～1000ppm Touch-screen display;
Brand: British MICHELL
1 Organic solvent filtration system Quality and efficient
activated carbon A built 21 L activated carbon, can be replaced.
1 Circulating fan High-speed frequency fan High degree of vacuum of the circulation pump;
Brand: Taiwan DRAGANG
Feedthrough Connect use For gas and source connection
Functional Description
Manual / automatic control system pressure;
Manual / automatic control system purification state;
Manual / automatic control system pressure;
Manual / automatic control system purification state;
Automatic control of the reduction process of the gas purification system;
Automatically prompts alarm function;
System control parameter settings;
Record system parameters;
System condition monitoring;
Working conditions and performance indicators
Power supply 220V（AC） 50HZ
Maximum Power ≈3000W
gas the working gas: Ar, He etc.inert gas
control gas: compressed air or inert gas
Reducing gas: working gas mixed of hydrogen (H2).
Cabinets water content in the standard case
(Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees) ≤1ppm
Cabinets oxygen content in the standard case
(Note: The standard case is an atmospheric pressure, a constant temperature of 20 degrees) ≤1ppm
airlock withstand a minimum vacuum value ≥100pa
The leak rate ≤0.001Vol%/ h
Power Supply：220V（AC）50HZ Max. Power：3000W
QUOTATION:
Valid Period: 30 days
M.O.Q: 1 PC
Payment item: 100% TT in advance
Lead time: about 30 days after receive the payment
REMARKS:
Price include Purification system & Water probe & Oxygen probe & Vacuum Pump
Standard Accessories Brand
PLC & Touch Screen Germany SIEMENS
Water Probe American AII
Oxygen Probe British MICHELL
Vacuum Pump Japan ULAVC |
|
